Reprap Morgan Source

To build your own from scratch…

Source files: Morgan Hardware:    https://github.com/qharley/Morgan

Source files: Morgan’s Marlin firmware:     https://github.com/qharley/Marlin/tree/armlevel

In South-Africa, and need printed parts? Click on the Parts button to the left. It will get you the parts you want…



Posted on 15 Comments
Posted on 5 Comments

Morgan’s Chinese family

Ryan Altair had to make do with what is available to him, and made a plan!

This morning on the forums:

She prints,the Morgan in Asia prints!!
Even this Morgan is not a original Morgan,sorry that I have to go to school before Aug.29, and my Mendel can’t print something big like the drivewheel. Without other choice, sorry that I have to make some change,after all ,it prints! And I sure, SCARA Morgan deserves the name,Hunt Morgan.it’s the best Reprap machine I ever seen!
Thanks everyone in this builders forum,especially Mr.Quentin. Without your help I can’t make it to this step!
If there is anything I can help,I am on my way to be a volunteer.
Thanks again!

Ryan
beautiful moring of Aug.26

Morgan2

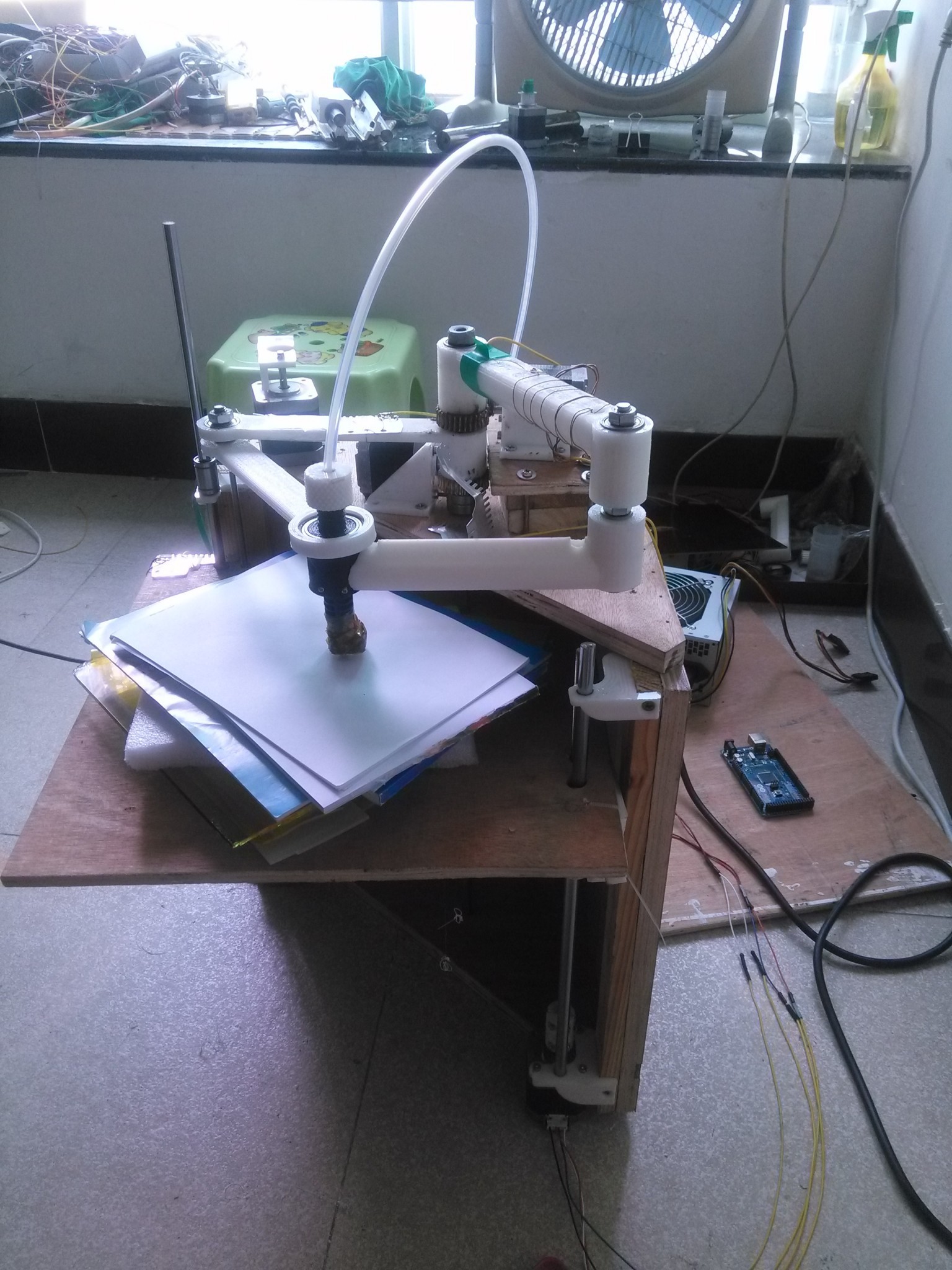

Morgan3

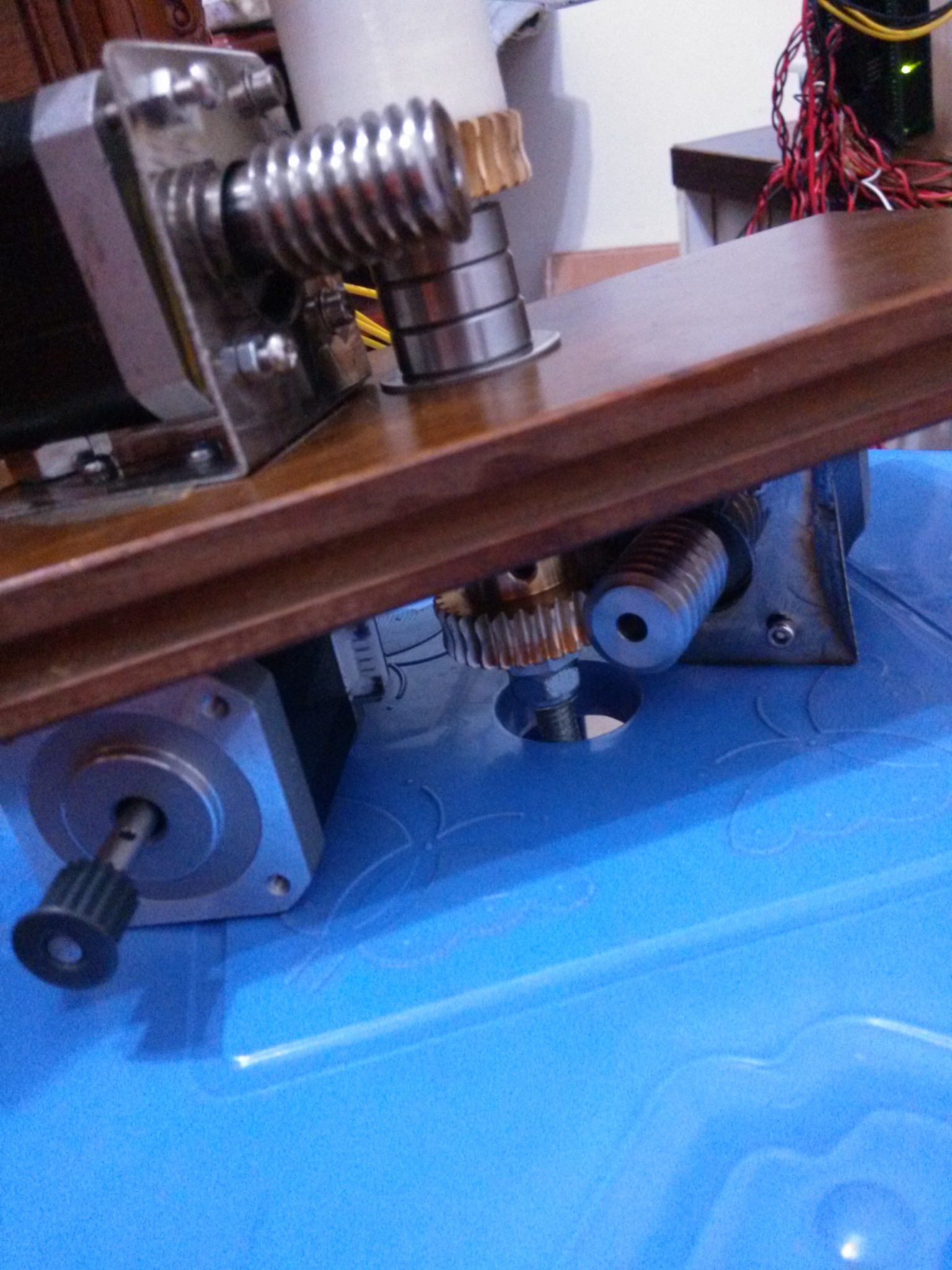

Morgan_wormgear

Morgan1

Posted on 5 Comments
Posted on Leave a comment

Morgan Ultimate?

Wim de Groot is at it again…

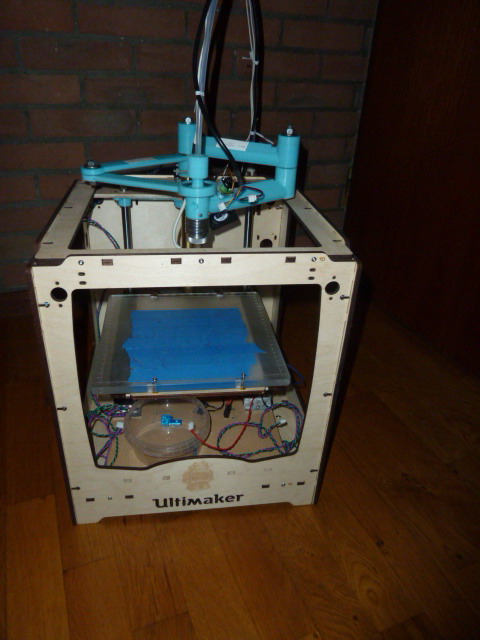

Morgan Ultimate Morgan Ultimate arms Morgan Ultimate drives

Wim writes:

I had access to another Ultimaker kit and applied that with the available Morgan parts from the first trial set-up.
I used the Ultimaker platform ( =more stable but mounted up side down to get the platform higher) , and with M8 thread and nut as in your design.
I used the Ultimaker extruderfeeder, electronics and motors.
I designed and built a hotend for the Morgan arm.

We now are struggling with positioning the end stops, the firmware and the calibration.
I have got a friend to do that for me as I am more a mechanical guy.
Where and how did you place the Hall sensors?

We let you know when the printer works.

Problems so far:
The standard Ultimaker print surface dimensions are too small for the full use of the Morgan arms.
Home position as you sent me in a picture can not be attained/applied.
We need to find a way to mount two homing switches (Hall type) for the arms.

Posted on Leave a comment
Posted on 8 Comments

Morgan arm calibration guide

I have shot some video, showing the Pronterface console and the machine, but for some reason I have trouble with the sound of it.  I may have to narrate the whole thing….

In the mean time I have drawn up a flowchart that sums up the whole video.

Morgan Cal flowchart  (corrected version… Thanks Fig)

Please feel free to ask questions if anything is unclear.  This flowchart works great for me.

http://reprap.org/wiki/G-code

Posted on 8 Comments
Posted on 3 Comments

Morgan builders forum

The forums you asked for are here. Post your questions, trails and tribulations on getting parts, and build progress here. Get inspiration, or inspire others.

Be part of the 3d revolution

Posted on 3 Comments
Posted on 1 Comment

Agents of the 3D revolution

This weekend you can see me at the Agents event in Johannesburg.

http://agentsofthe3drevolution.com/

I even have a short Q&A session with a small printing demonstration as part of Dr Schalk Heunis’ talk just before lunchtime on Saturday.

Q

Posted on 1 Comment
Posted on 14 Comments

Gada prize

Kartik Gada just announced:

Everyone,

I am happy to announce that we have a winner in the Interim Personal Manufacturing Prize, initially conceived of in 2009, and in the amount of US$ 20,000. The Prize Specifications are here, under ‘Interim Personal Manufacturing Prize’ :
Prize Specifications

So…….

The winner is : ‘Morgan’ by Quentin Harley.

Some links with more information about Morgan.

Your ideas wants to come alive


http://reprap.org/wiki/RepRap_Morgan

Posted on 14 Comments
Posted on 12 Comments

Reprap Morgan kits available

OpenHardware.co.za has now released Reprap Morgan for preorders!

Reprap Morgan Kit ZA

Get yours today!
If you are in Gauteng, I will be presenting free workshops @house for hack Centurion to help you get the most out of your Morgan.

Cheers!
Quentin
